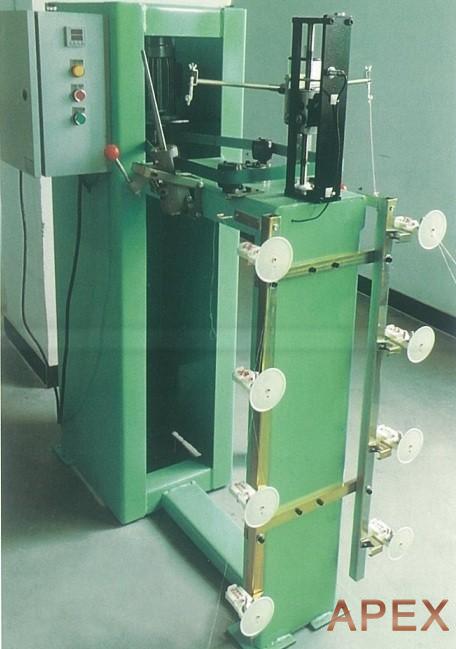

Double-head Vertical Wire Drawer

Double-head vertical wire drawer (Doubling machine / doubling winder)

The wire drawer (doubling winder machine), wire drawing machine is an accessory product of the wire wrapper machine, it’s used to wind or rewind the wire of different specifications & different number of strands to the special wire spindle.

This procedure is the previous process of wire wrapping production. The machine runs smoothly with high production efficiency ; The winding of the wire shaft is even and flat.

The main technical parameters:

1. Main drive motor power: 0.75 HP

2. Working voltage: 220V

3. The maximum speed of the yarn drum: 4000 rpm/min

4. Number of working heads: 2

5. Cable: polished rod type cable arranger, adjustable traverse

6. Stop method: manual brake, stop by meter

7. Speed regulation mode: stepless speed regulation of frequency converter

8. Wire drawing direction: S, Z

9. Equipment dimensions: 1,200 mm*600 mm*1,500 mm

10. Number of spindles for the creel: 8
